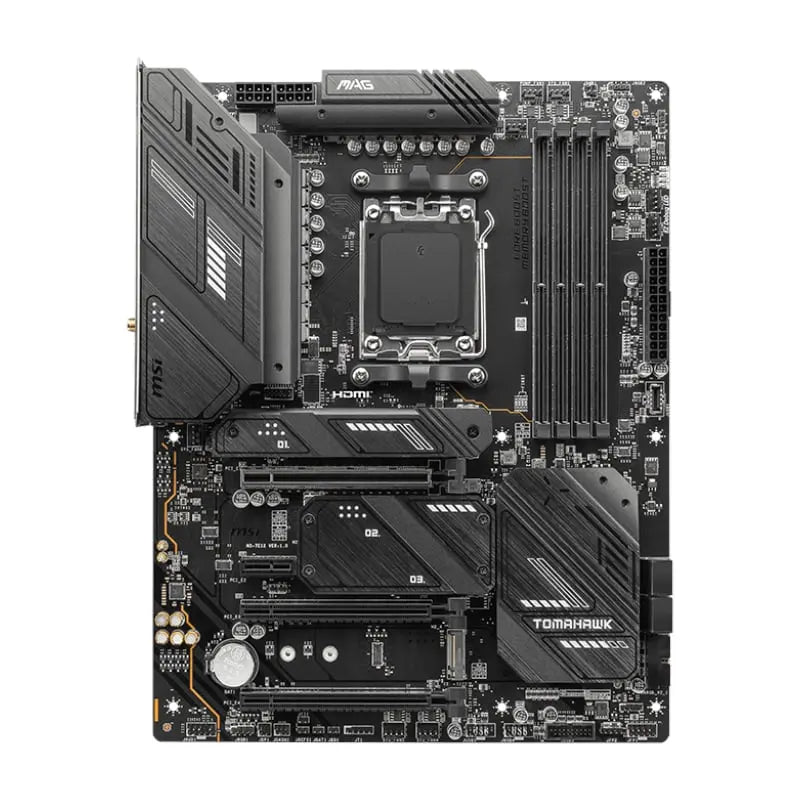

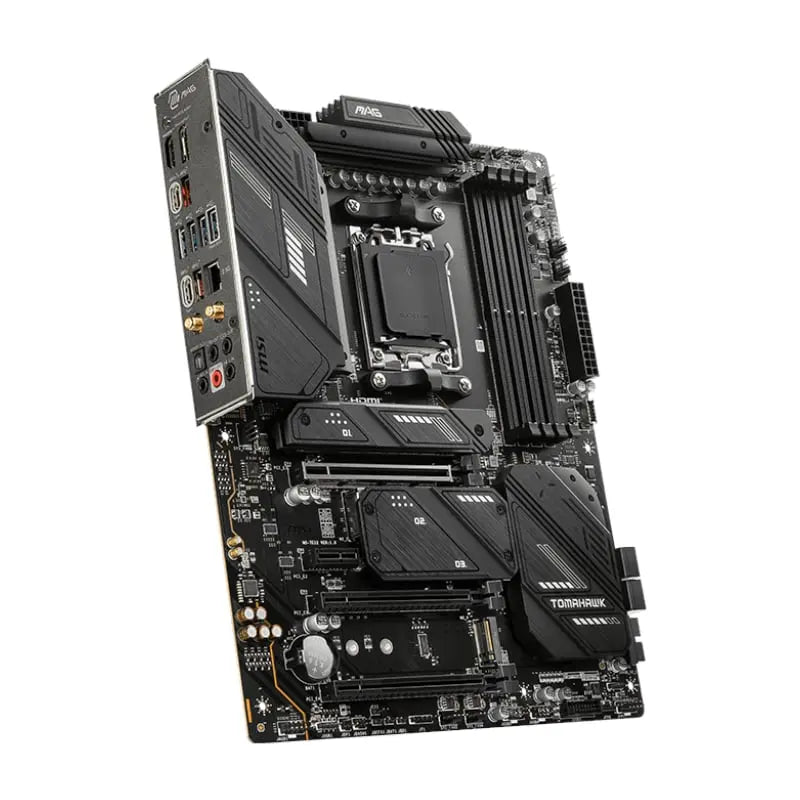

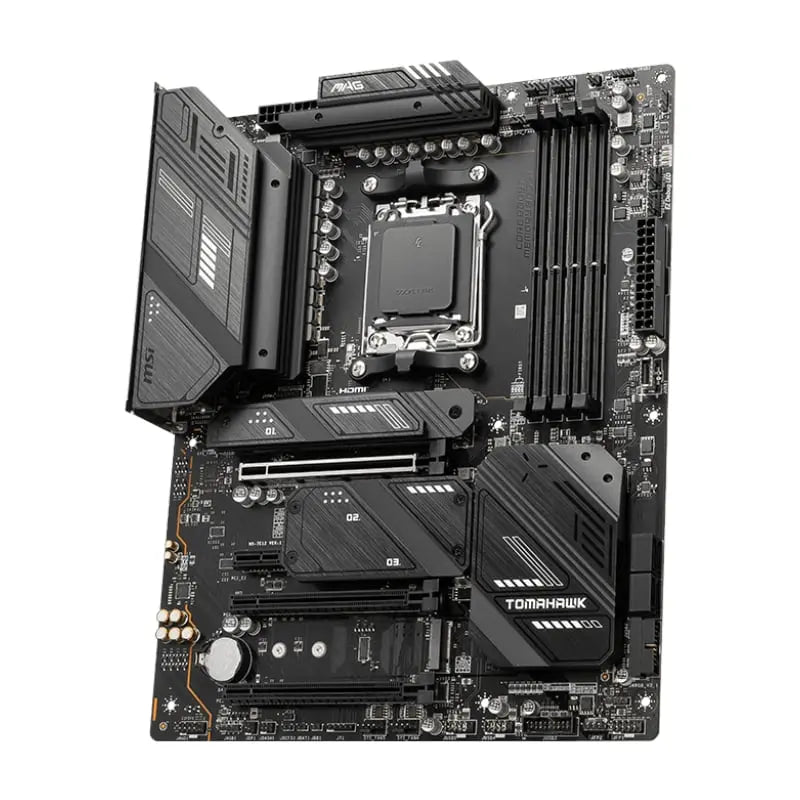

MSI MAG X670E TOMAHAWK WIFI AMD AM5 ATX Gaming Motherboard

The MSI MAG X670E Tomahawk WIFI motherboard is equipped with a combination of 8 + 8-pin power connectors and exclusive Core Boost technology, making it capable of handling heavy gaming loads. Their state-of-the-art digital CPU power system ensures optimal performance, allowing you to push your system to its limits. The Extended Heatsink is designed to increase the surface area for heat dissipation, allowing high-end processors to operate at their maximum speed without any issues while the M.2 SSDs are kept safe and their performance is optimised to prevent throttling, resulting in faster operation.

The latest DDR5 memory represents a significant advancement in DDR performance enhancement. The MAG X670E Tomahawk WIFI combines a dedicated SMT welding process with MSI Memory Boost technology, resulting in exceptional memory performance. The advanced Surface Mount Technology (SMT) welding process effectively minimises the occurrence of defects in slot solder joints, as well as reduces issues related to electromagnetism and interference. MSI motherboards utilise exclusive Memory Boost technology, which enables them to deliver a clean and pure high-frequency DDR5 signal.

MSI offers a premium network solution that delivers exceptional data transfer speeds, catering to the needs of demanding users. The Mystic Light Extension pin header offers a convenient method for managing extra RGB strips and other RGB peripherals that are connected to a system. This eliminates the need for a separate RGB controller, providing a more streamlined and intuitive control experience.

FEATURES:

• Supports AMD Ryzen™ 7000 Series Desktop Processors
• Supports DDR5 Memory, up to 6000+(OC) MHz
• Enhanced Power Design: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen5 M.2, USB 3.2 Gen 2×2
• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high-performance systems and non-stop works
• AUDIO BOOST: Reward your ears with studio-grade sound quality for the most immersive gaming experience
• High-Quality PCB: 8-layer PCB made by 2oz thickened copper and server-grade level material

SPECIFICATIONS:

• Socket: AMD Socket AM5
• CPU: Supports AMD Ryzen™ 7000 Series Desktop Processors
• Chipset: AMD X670
• DDR5 Memory: 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
• Memory Channel: Dual
• DIMM Slots: 4
• Max Memory (GB): 192
• PCI-E x16: 3
• PCI-E x1: 1
• SATA 6G: 4
• M.2 Slot: 2
• RAID: 0/1/10
• LAN: 1 x Realtek® 8125B 2.5G LAN
• WiFi and Bluetooth: AMD Wi-Fi 6E
• USB 3.2 ports (Front): 1(Gen 2, Type C), 4(Gen 1, Type A)

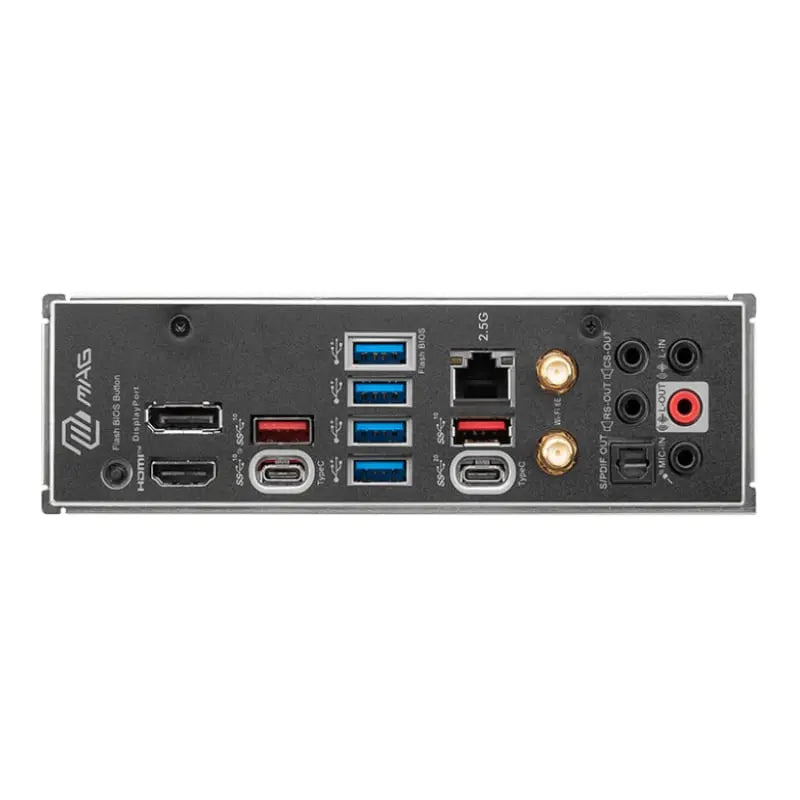

• USB 3.2 ports (Rear): 1(Gen 2, Type C), 2(Gen 2, Type A), 4(Gen 1, Type A)
• USB 2.0 ports (Front): 4
• USB 2.0 ports (Rear): 2 (Type-A)
• Audio ports (Rear): Realtek® ALC1200 Codec
• HDMI: 1
• DirectX: 12
• Form Factor: ATX
• Operating System: Support for Windows® 10 64-bit/11 64-bit

WHAT’S IN THE BOX:

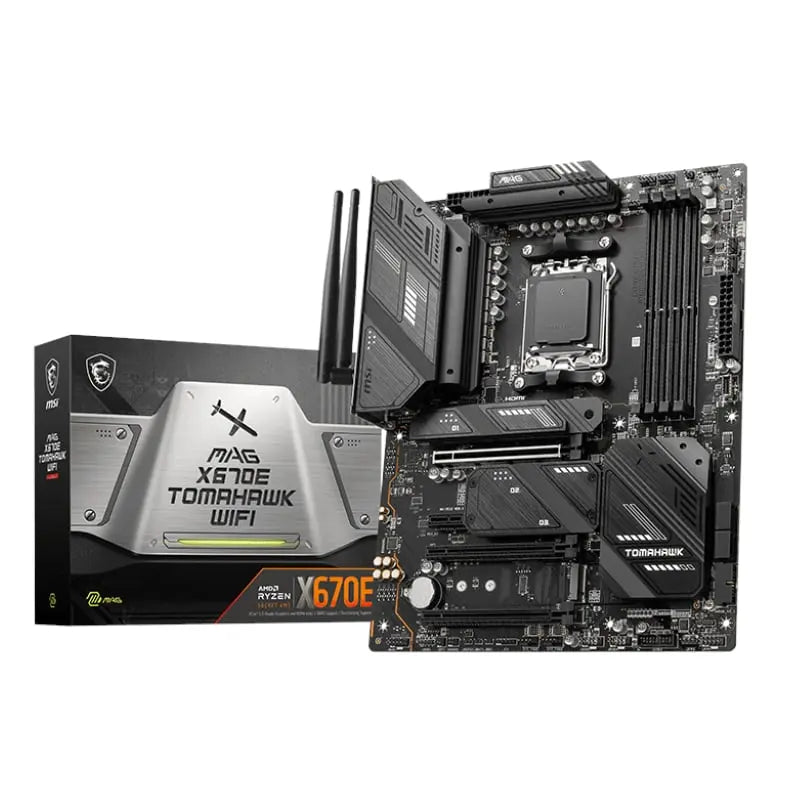

• MSI MAG X670E Tomahawk ATX Motherboard – Black x1
• WiFi Antenna x2
• SATA cables x2
• Standoff Screws/Sets x3
• USB Drive x1
• MAG Stickers Pack x1
• Quick Install Guide x1
• User Manual x1
